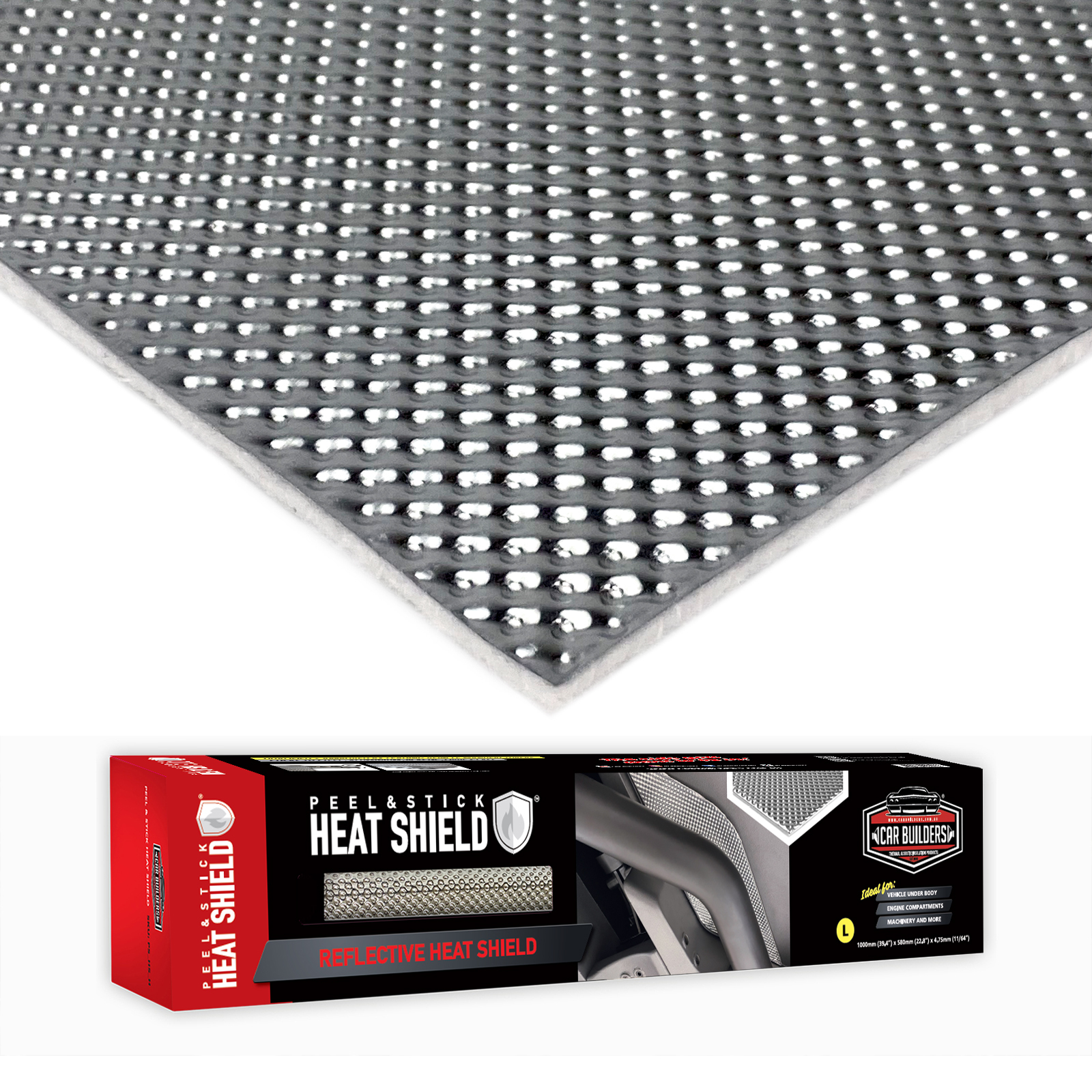

Peel & Stick Heat Shield

Car Builders Peel & Stick Heat Shield pressure sensitive adhesive makes these heat shields easy and versatile to install, particularly in tight spaces. It is widely used as a thermal barrier in many industries and works effectively to block heat around fuel tanks/systems, tunnel shields, floor pans, exhaust systems, body shields, transmissions, fluid lines and to protect non ferrous materials. Constructed from a needle punched fibreglass with a polyester core and durable aluminium face that comes in two thicknesses. The product has been oven test for 30 hours with no failure at 475ºF (246ºC)​.

Pros- Direct apply to surface being protected, ideal for tight spaces. Can be applied to plastic surfaces e.g. fuel tanks.

Features/Advantages

• Light Weight
• Easily formed into place
• Very effective in limited space
• Approved at several major OEM’s
• Acoustical sound deadening benefits without the squeak or rattle issues of stampings
• Interior or exterior applications
• Easy installation – just peel off the release liner and adhere to surface.

Applications

• Fuel tank/system
• Tunnel shields
• Floor pans
• Exhaust systems
• Body shields
• Transmissions
• Steering components
• Fluid lines
• Rubber mounts
• Axle bushings

Technical Specifications

Material Type:                              Polyester & Fiberglass core material

Temperature:                              Withstands 246ºC (475ºF) oven test for 30 hours with no failure

Core Thickness:                           3mm (0.125 inch)

Foil Thickness:                             0.2mm (0.010”)

Weight:                                             915-1400 g/m (3-4.5 oz/ft2)

Moisture Absorption:                0.3%

Thermal Conductivity               24ºC: 0.036 W/m/ºK

(K-value)                                         93ºC: 0.043 W/m/ºK

Adhesion To E-Coated Steel 22.1 N/cm after 24hr Dwell

Tensile Strength                         526 N/cm2

 Tear Resistance                          333 N/cm

Installing Peel & Stick Heat Shield
