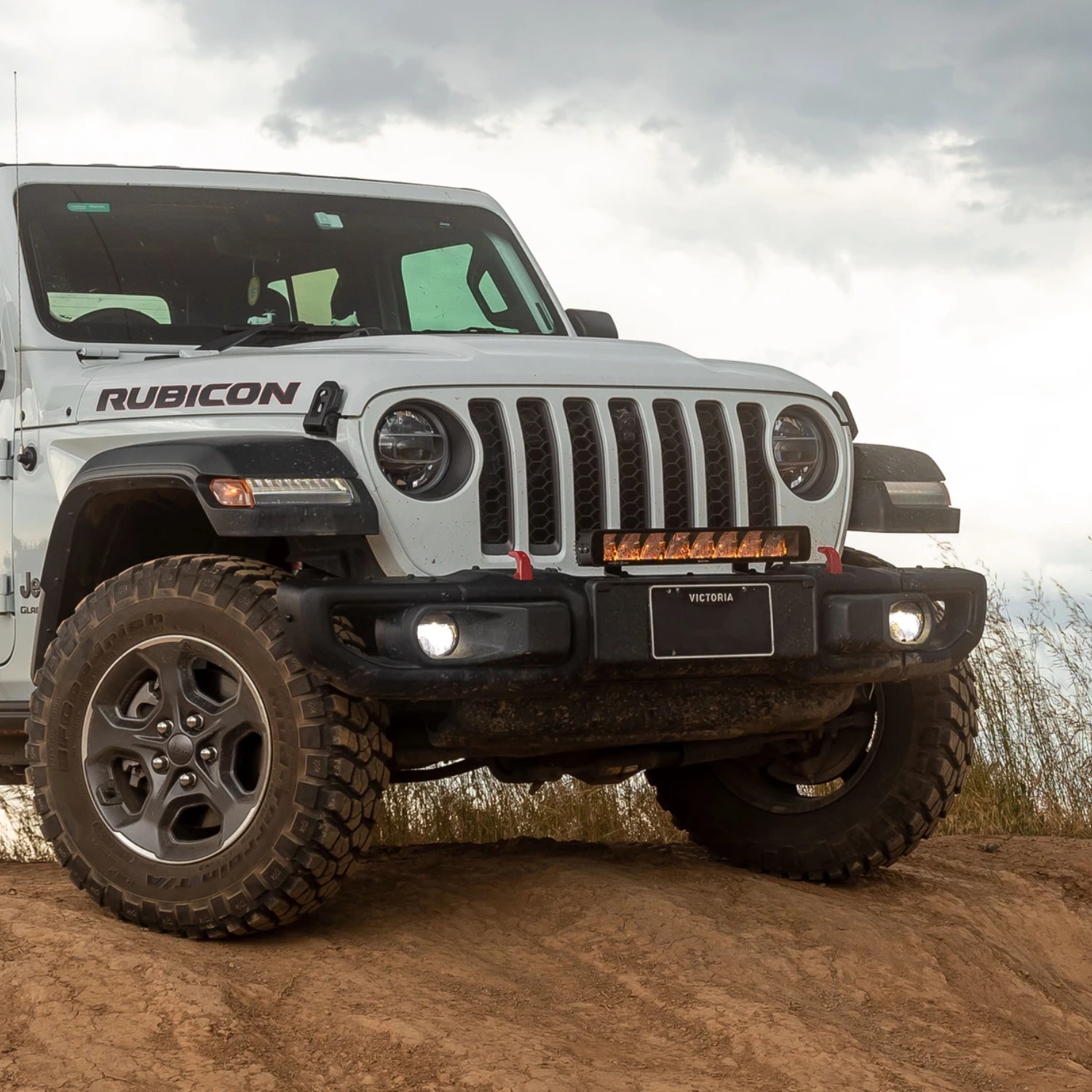

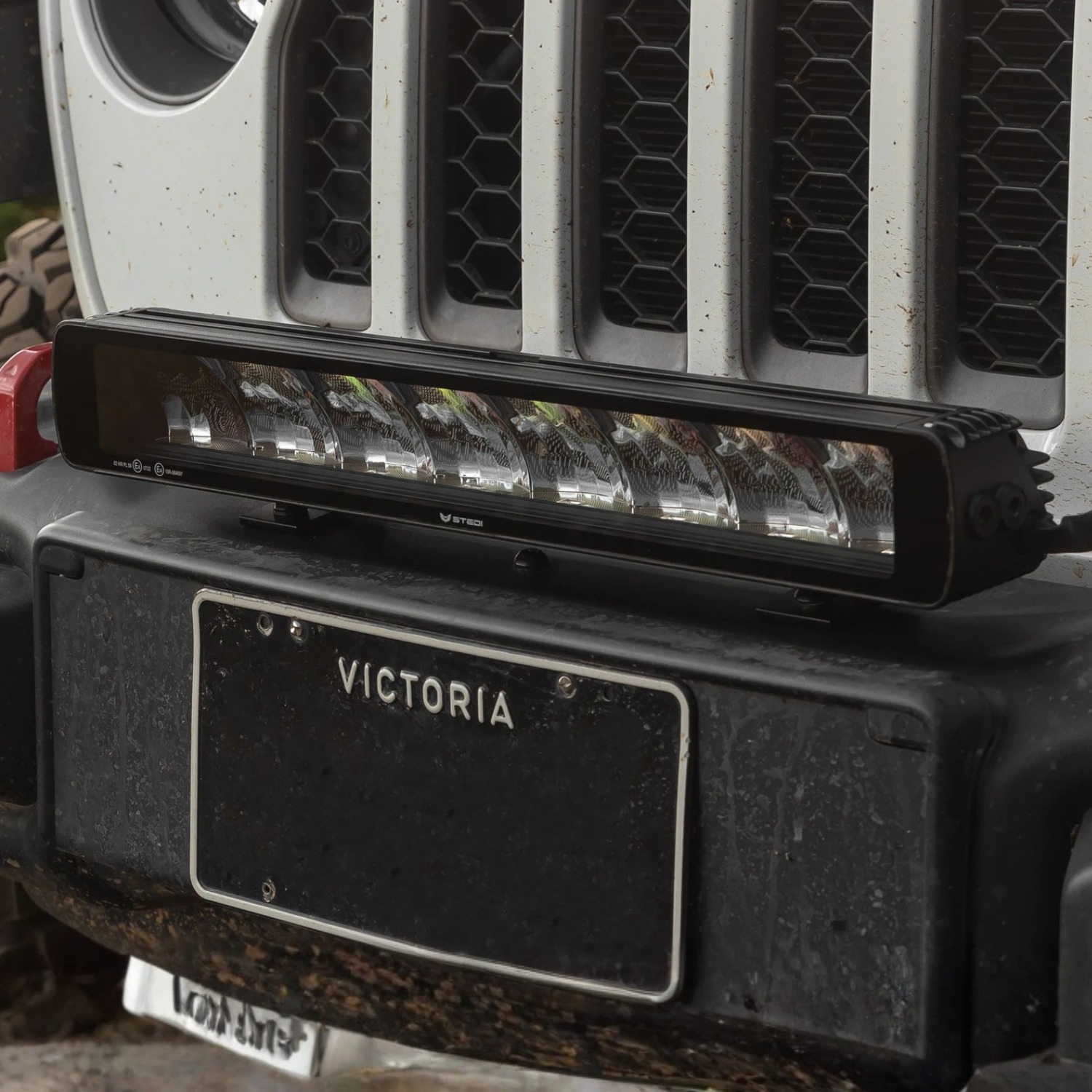

ST-X 21.5 INCH LED LIGHT BAR

THE BEAM PATTERN

If you’re looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.

• Significantly minimises adverse reflection from road signs
• Controlled vertical spread minimises reflections off of high-mounted road signs.

KEY FEATURES

• 8x 15W LEDs
• LED Parking / Position Light Function (Amber or White built-in)
• Breather allows pressure equalisation when rapid heat up and cool down cycles occur
• Anodized Polyester Powder Coat
• Weatherproof Deutsch® DTP Connector
• Includes adjustable Side brackets & Sliding bottom brackets
• Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles)
• Protected against reverse polarity
• Shockproof, IP68 waterproof, UV Shielded
• Protected Against RFI / EMC Interference
• Voltage & current surge protection
• Pulse Width Modulation Thermal Management

TECH SPECS

WHAT’S INCLUDED

• 1 x 21.5 Inch ST-X-20L LED Light Bar
• 2 x Steel Side Brackets
• 2 x Steel Sliding Brackets
• 2 x Brace Support Brackets
• Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
• Comprehensive 304 Stainless Steel fasteners
• Wiring Instructions
