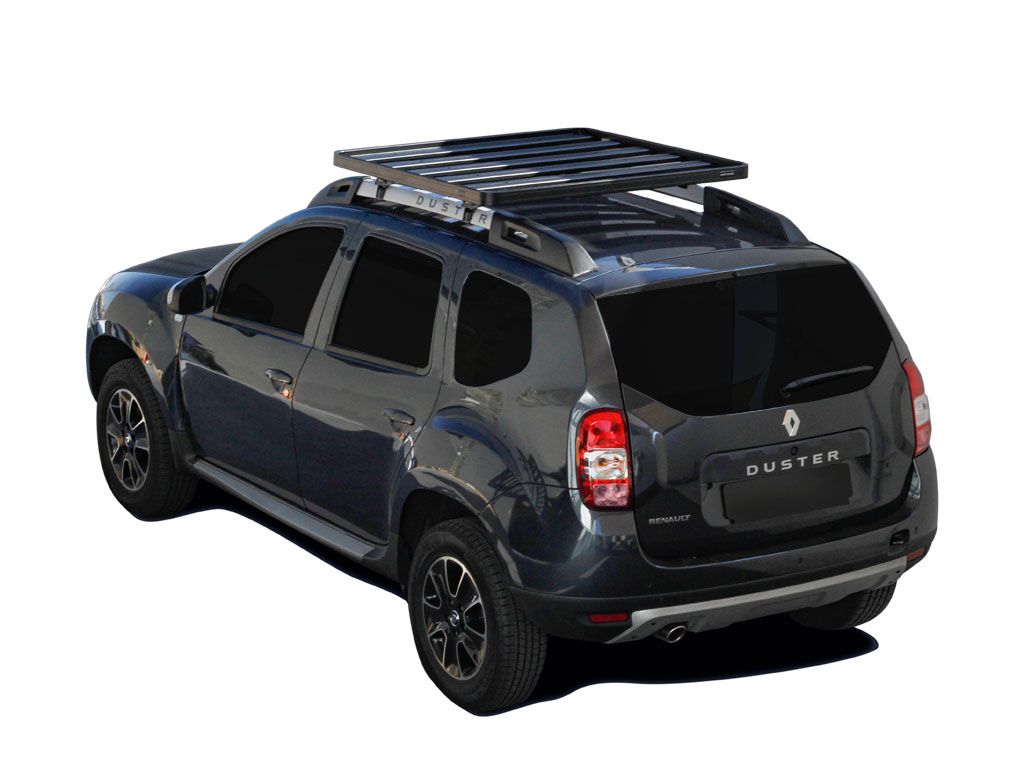

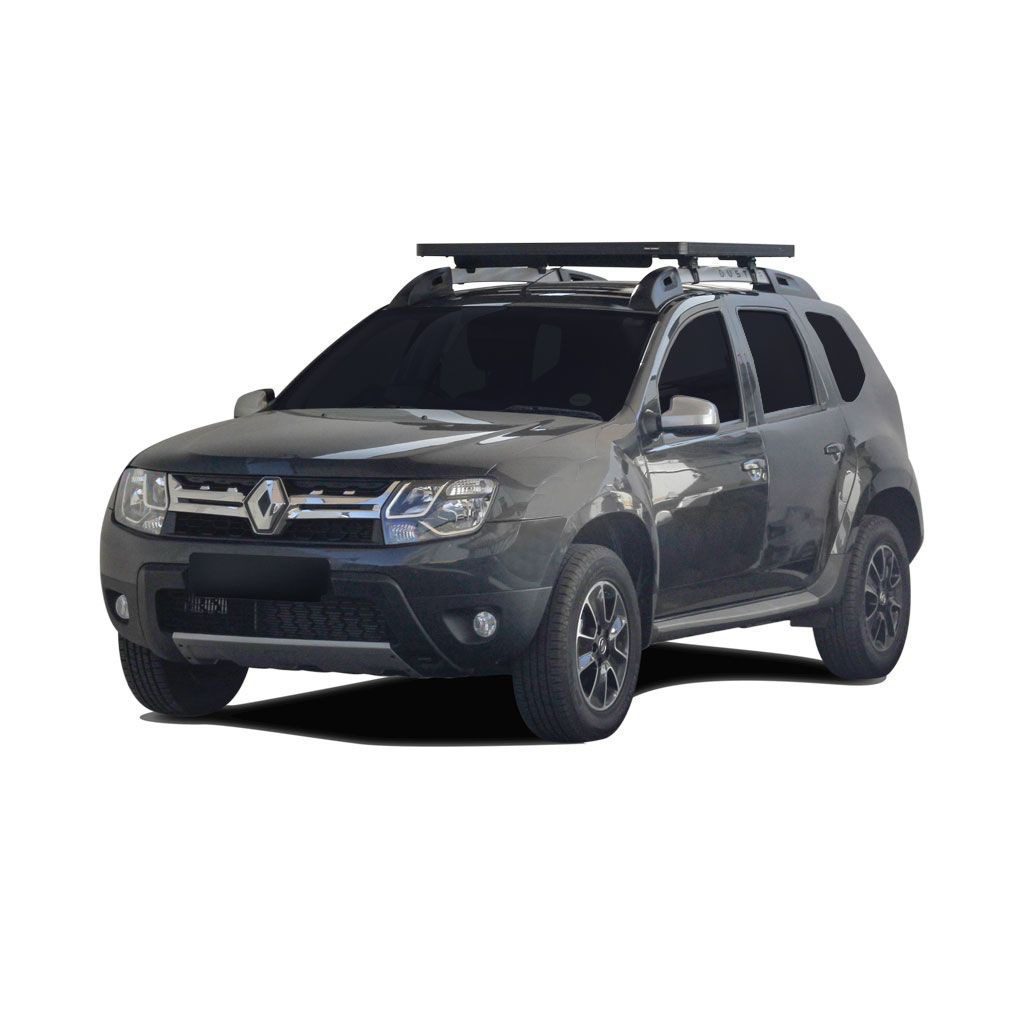

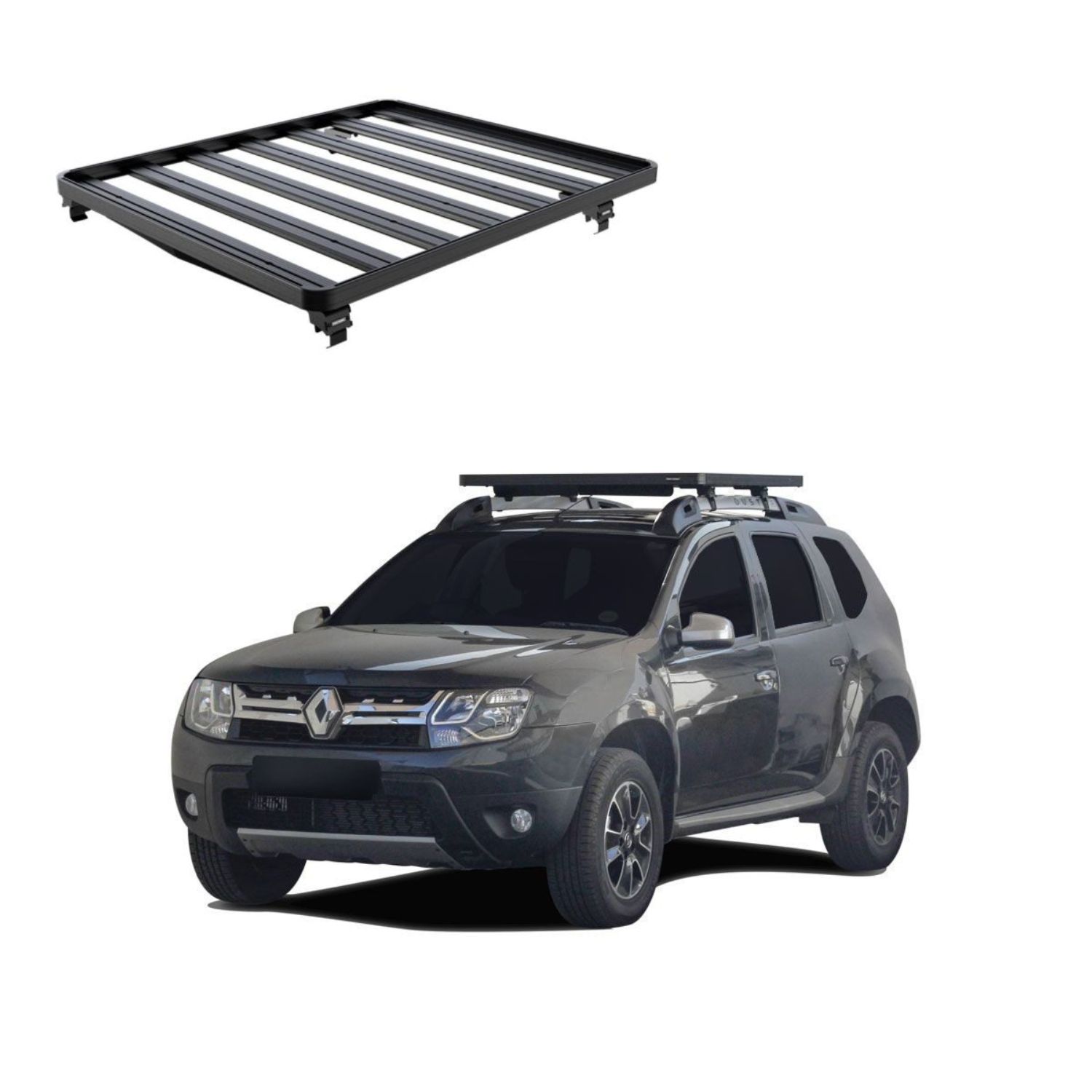

DUSTER 1ST GEN/FACELIFT (2013-2017) SLIMLINE II ROOF RAIL RACK KIT – KRRD002T

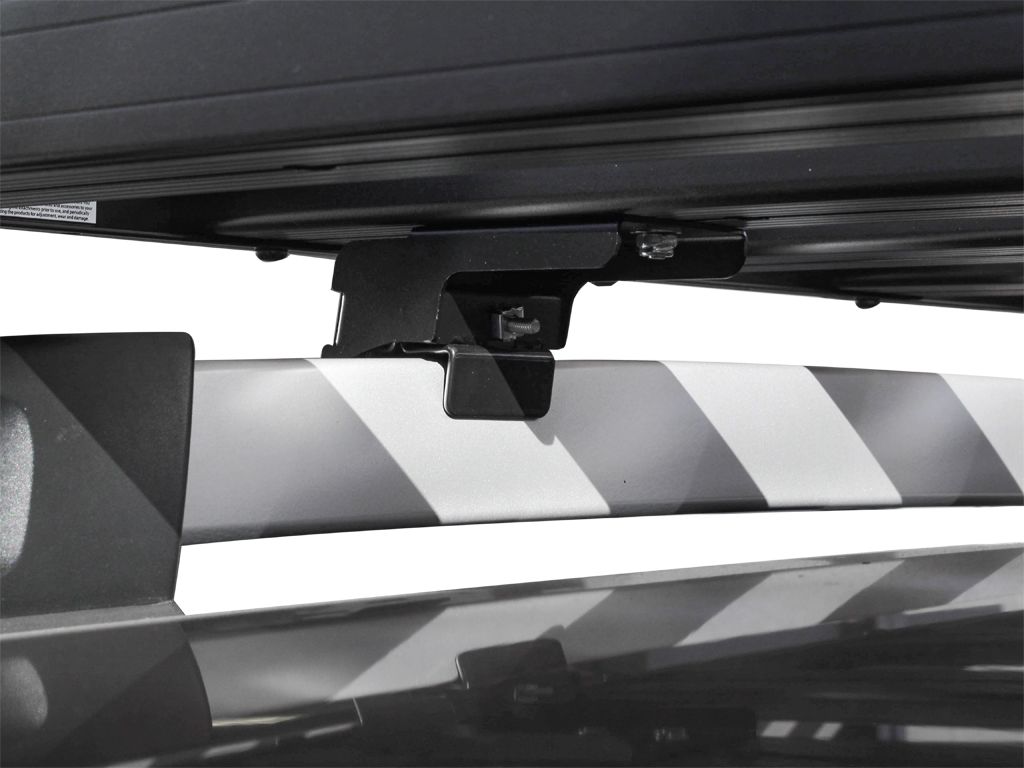

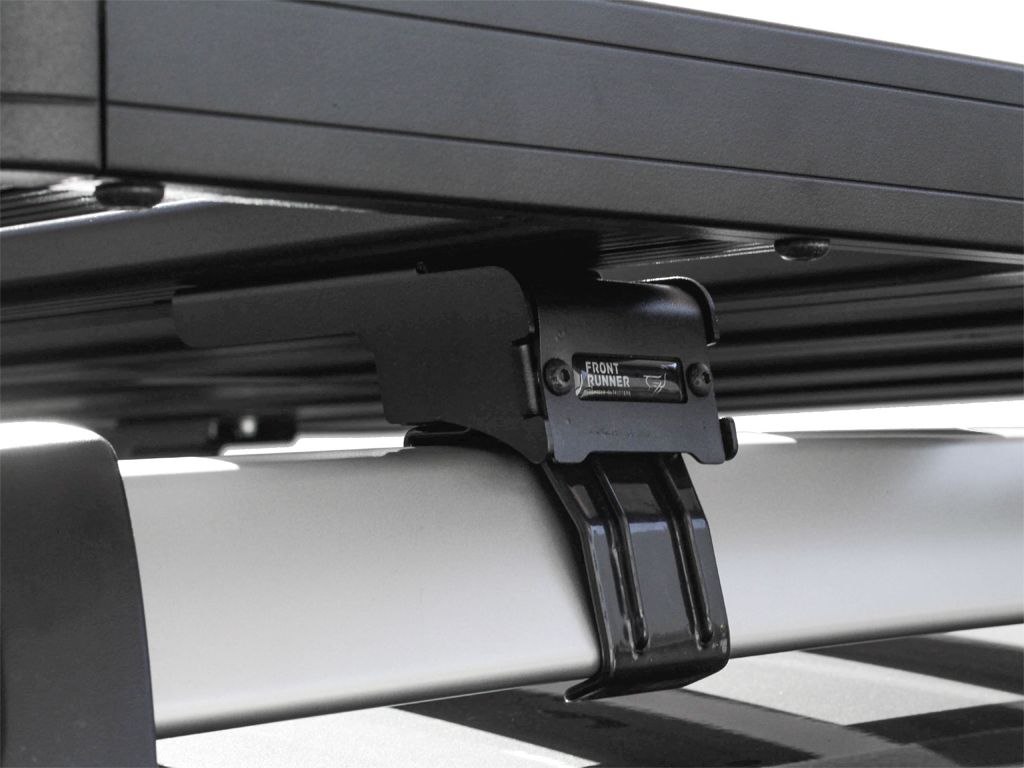

This 1358mm/53.5″ long, full-size, Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector, and 2 pairs of Grab-On Feet to mount the Slimline II Tray to the roof rails of your Renault Duster. This system installs easily with off-road tough feet that grab onto the existing factory/OEM roof rails. No drilling is required.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

NOTE: Your vehicle must be equipped with the factory/OEM roof rails in order to use this rack kit.

This rack kit can be removed leaving your vehicle’s roof and roof rails in their original condition.

Factory Rail Rack Kits are designed as a “light duty” cargo solution. Please refer to your vehicle’s owner manual for manufacturers recommended load rating and do not exceed these limits.

For optimal load-carrying capacity, we recommend that there is no cargo overhang (excludes sports gear) and all weight is distributed evenly across the rack.

Factory Rail Rack Kits are not suited for extreme off-road conditions and therefore you should consider a different Front Runner mounting solution if this is your intended purpose.

Consisting of:
2 x GOFR001 – Rail Foot Base (Pair) – by Front Runner

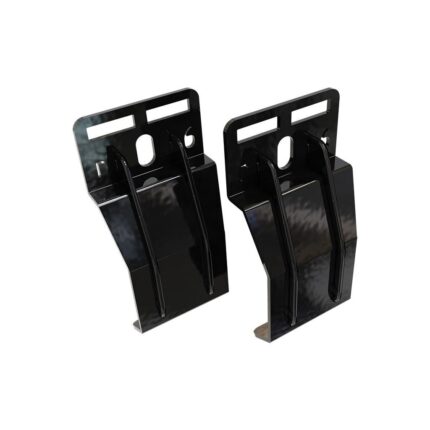

2 x GORR055 – Raised Rail Outer Grab-On / No. 6 – by Front Runner

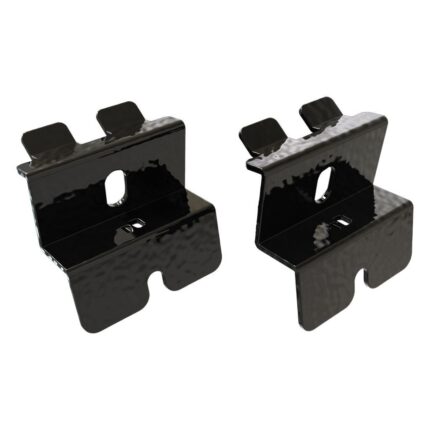

2 x GORR073 – Raised Rail Inner Grab-On / D – by Front Runner

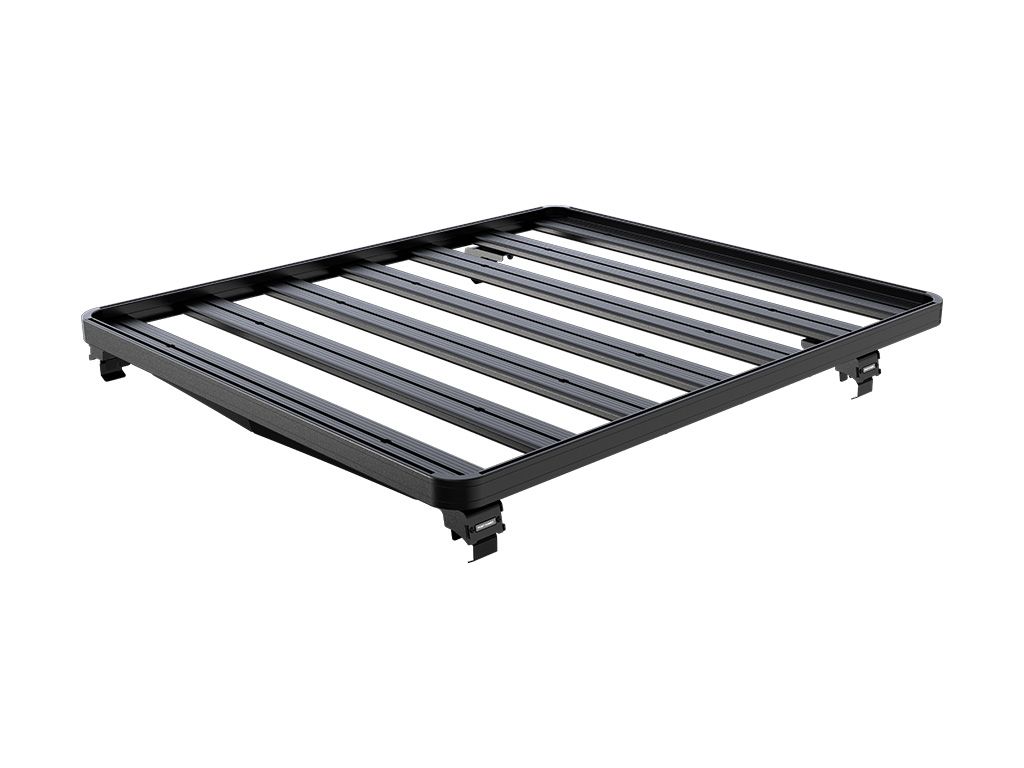

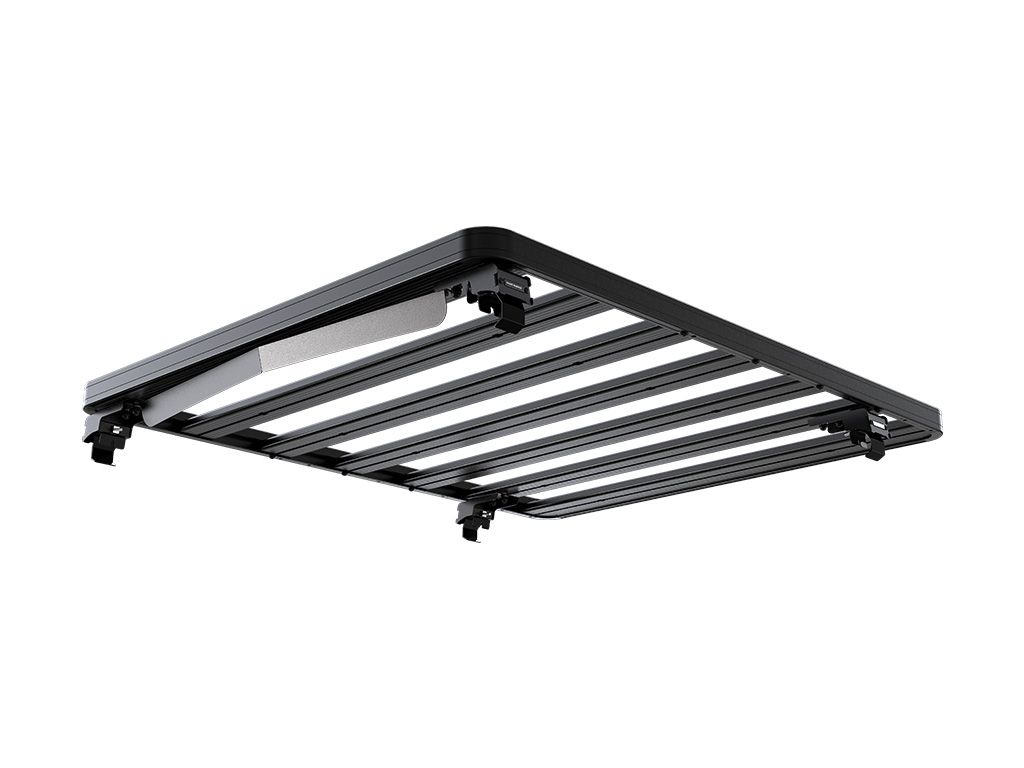

1 x RRSTA07 – Slimline II Tray – 1165mm(W) X 1358mm(L) – by Front Runner
1 x WDST011 – Wind Deflector 20mm Lip Extra Narrow Pair / 1165mm(W) – by Front Runner

Material used:
Black epoxy powder-coated T6 aluminum
3CR12 Stainless Steel

Approximate Installed Weight 21kg (46lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot, Grab-on Foot, or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicle’s roof.

Shipping Dimensions:
Width 455mm (18″)
Length 1610mm (63″)
Height 285mm (11″)

Shipping Weight:
Weight 24.6kg (54.0lbs)
