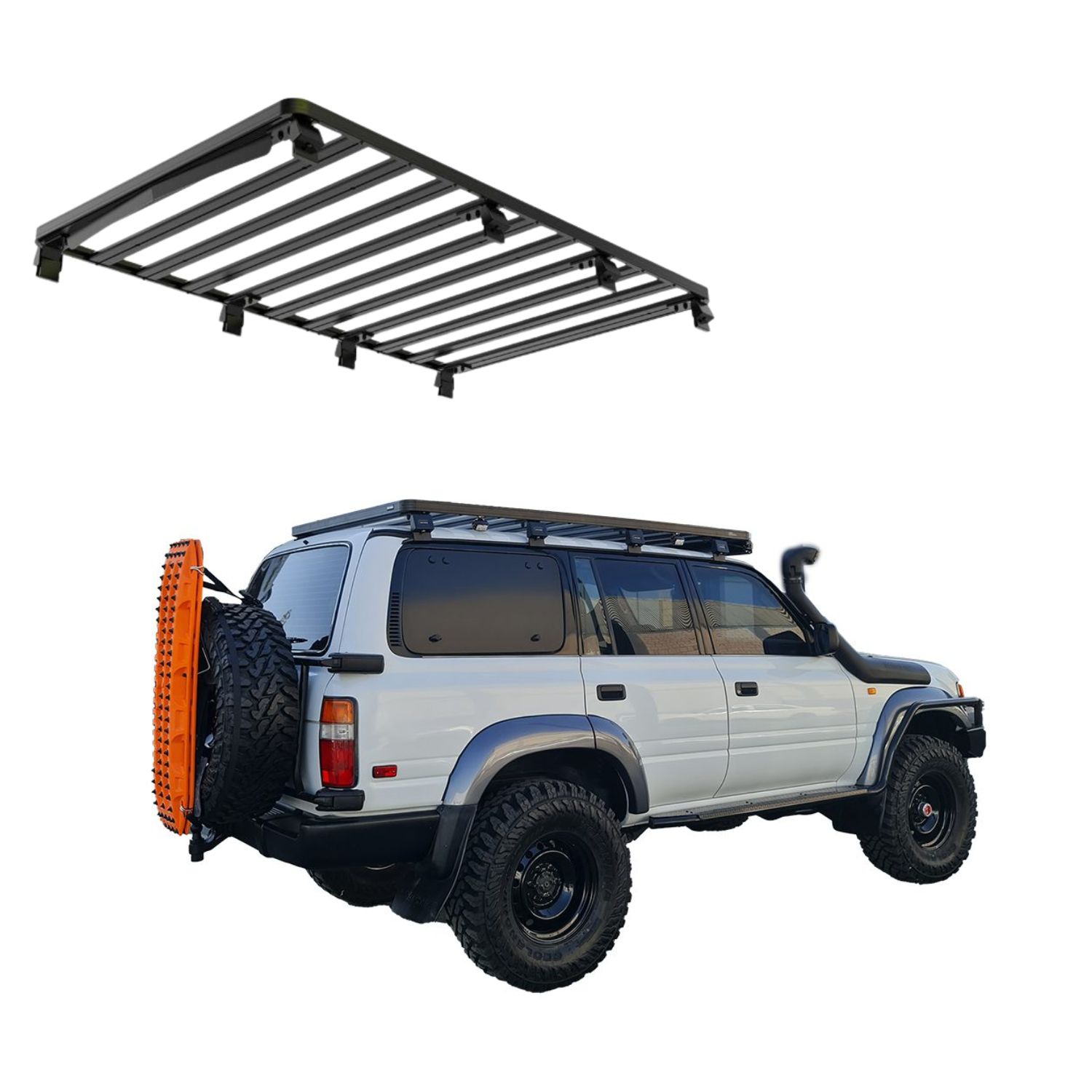

LC 80 (2166mm) SLIMLINE II ROOF RACK KIT

This 2166mm/85.3″ long full-size Slimline II cargo carrying roof rack kit the Nissan Patrol Y61 contains Slimline II Tray and Wind Deflector, as well as 8 Gutter Mount legs for mounting the Tray to the vehicle. This taller kit has space for mounting the Front Runner tables or other compatible accessories under the rack. It installs easily with no drilling required.

All Front Runner Racks are backed by a Limited Lifetime Warranty

Consisting of:
1 x LASS102 – NO 2 LEG 130MM (PAIR) – BY FRONT RUNNER
3 x LASS101 – NO 1 LEG 120MM (PAIR) – BY FRONT RUNNER

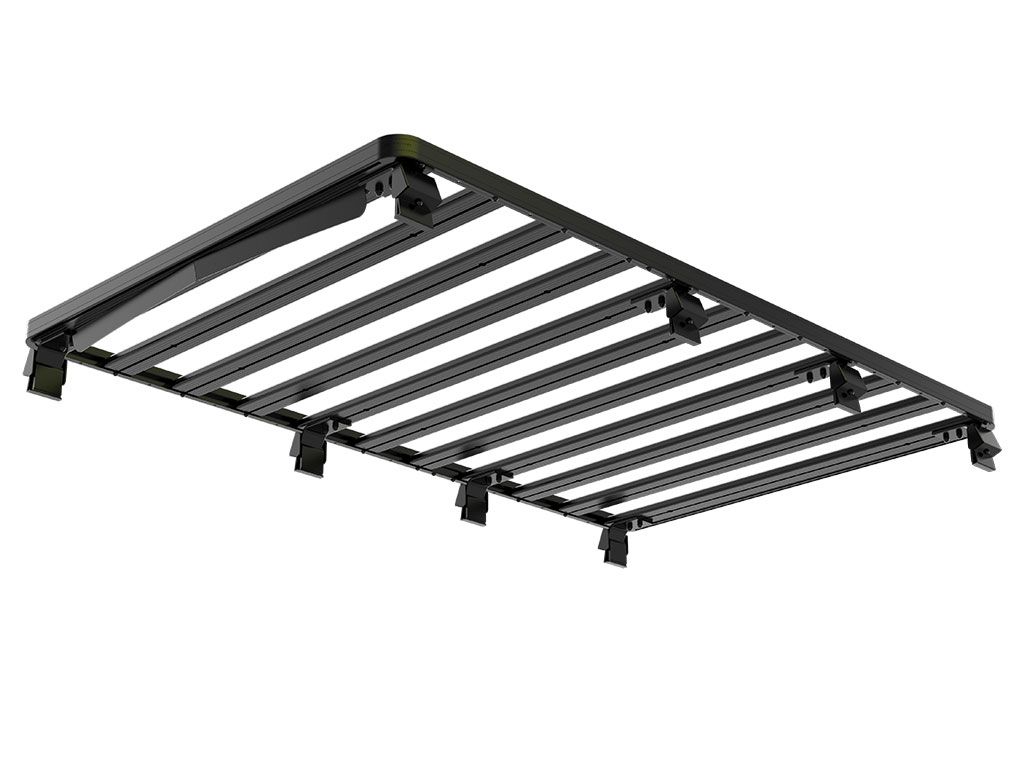

1 x RRSTG11 – Slimline II Tray – 1345mm(W) X 2166mm(L) – by Front Runner

Material used:
Black epoxy powder-coated T6 aluminum
3CR12 Stainless Steel

Approximate Installed Weight 34kg (76lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot, Grab-on Foot, or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the roof of the vehicle.

Shipping Dimensions:
Width 450mm (18″)
Length 1615mm (64″)
Height 140mm (6″)

Shipping Weight:
Weight 39.2kg (86.2lbs)
