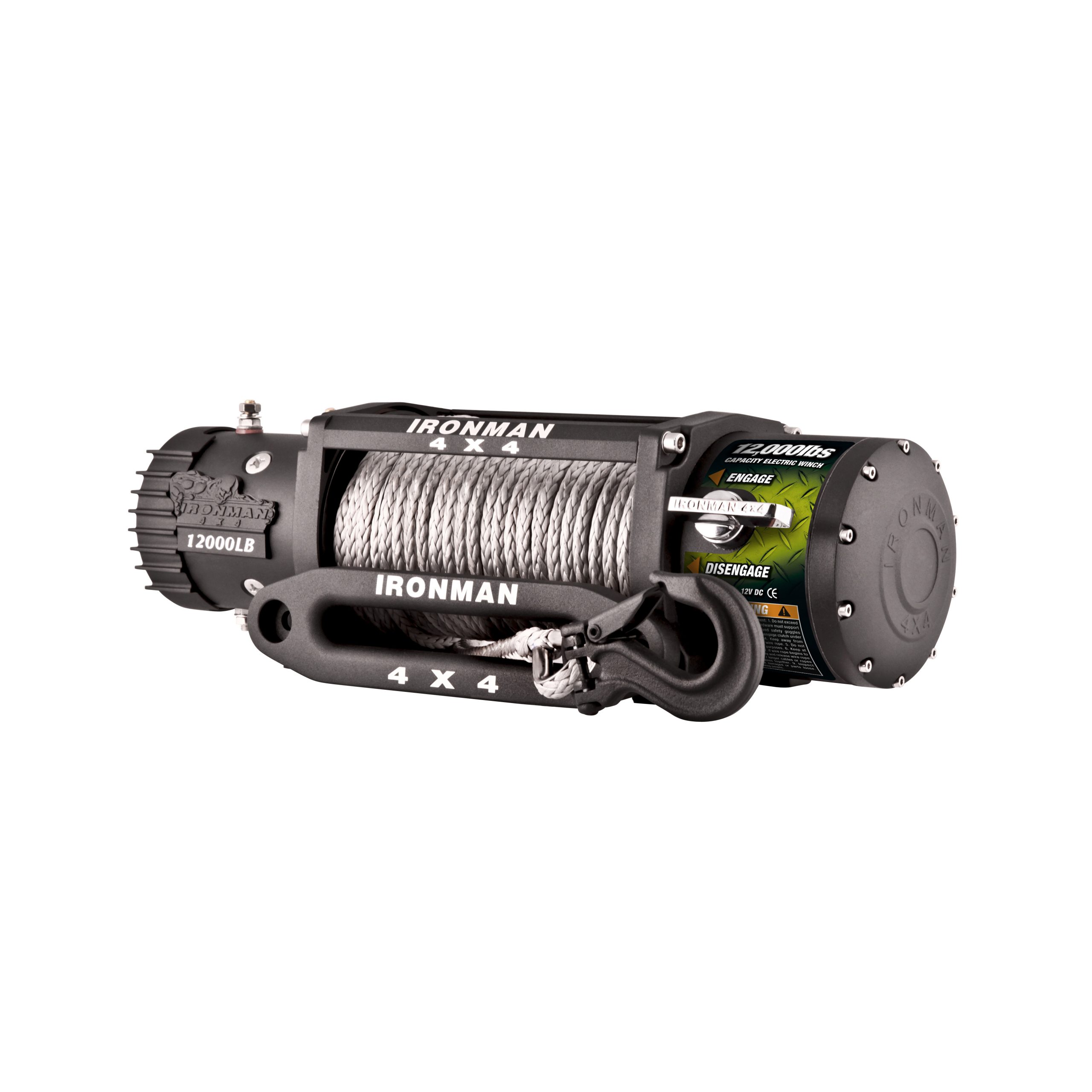

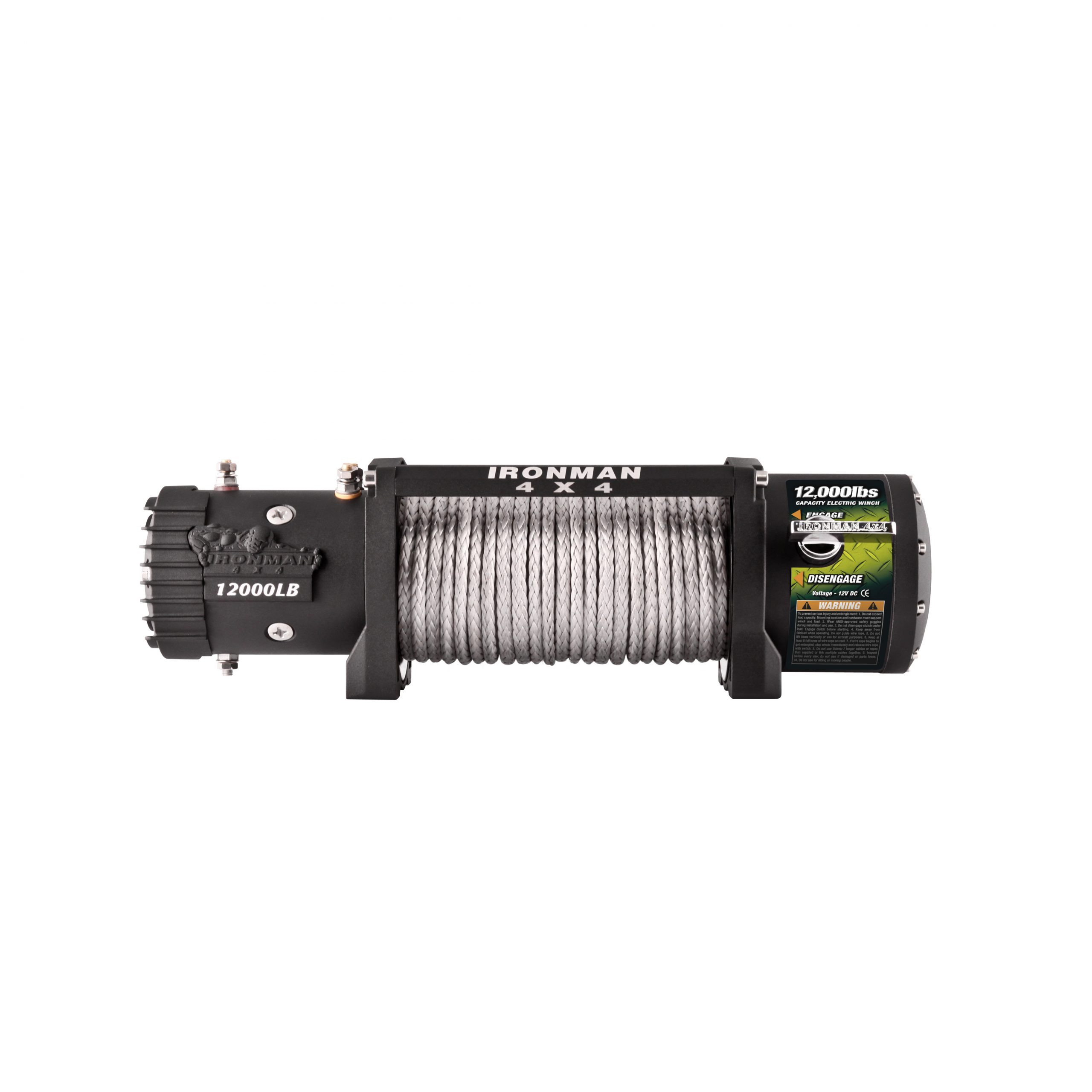

12,000LBS SYNTHETIC ROPE MONSTER WINCH

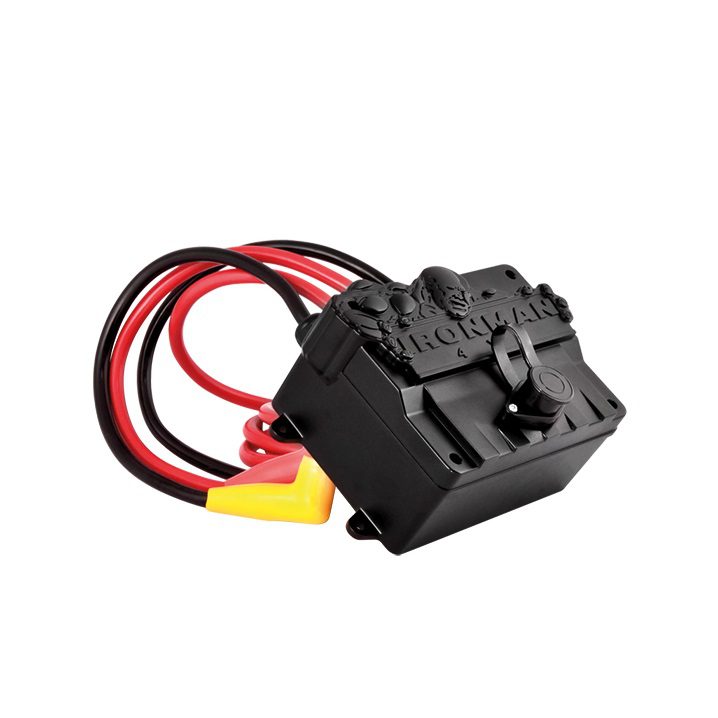

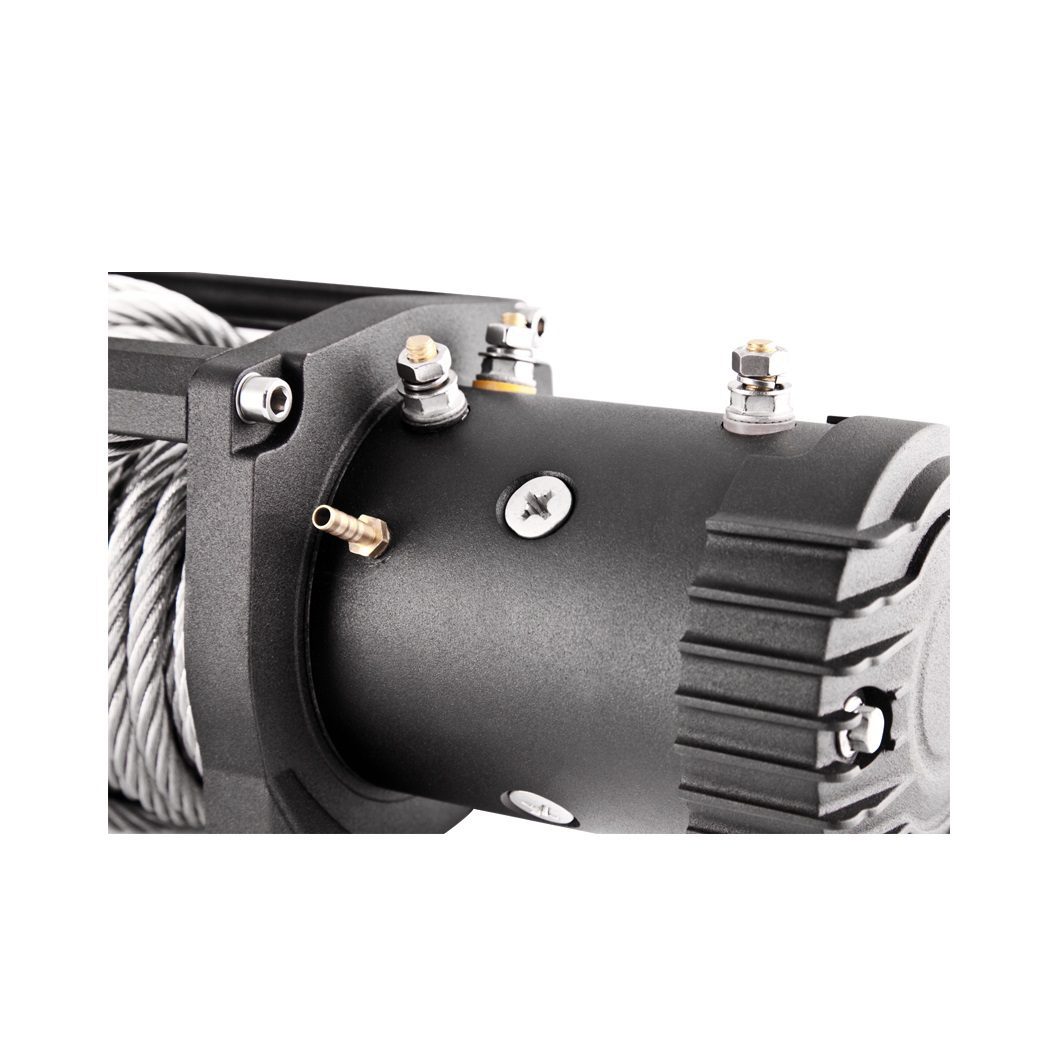

The Ironman 4×4 Monster Winch has evolved! Totally redesigned and upgraded, Ironman 4×4 Monster winches include stronger motors, heavy duty casings, synthetic ropes, competition style solenoid and a motor breather.

Designed and developed right here at Ironman 4×4 Australia, our latest Monster Winch range are a must have accessory for your four wheel drive!

SPECIFICATIONS

Series                                                      Woundtrue

Motor                                                      6.4HP / 4.5KW

Power                                                      12VDC

Weight                                                    29kg

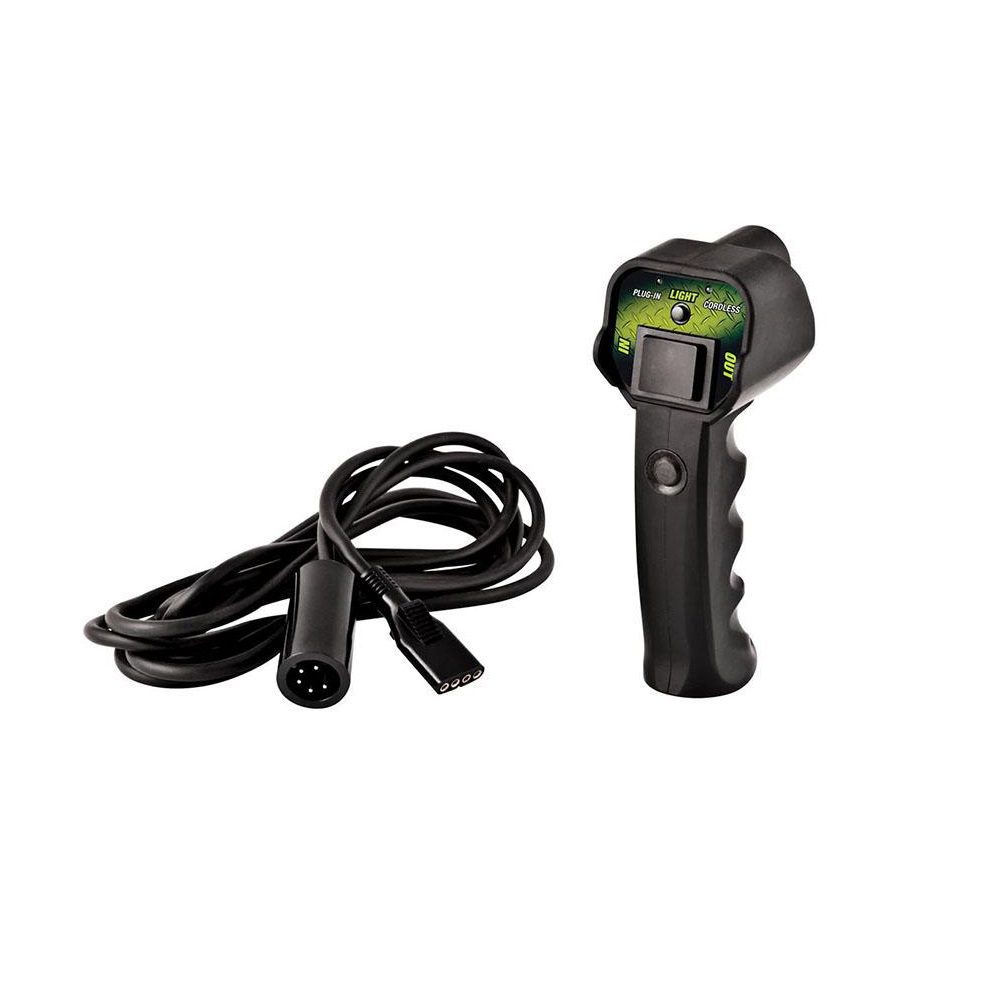

Wireless Remote Range                      30.5m

Remote Lead Length                            3.6m

Gear Train                                              3 Stage Planetary

Gear Reduction Ratio                          265:1

Brake                                                       Automatic Camp Lock (In Drum)

Synthetic Rope Dimensions               28m x 9mm

Overall Dimensions                             540mm (L) x 165mm (H) x 150mm (W)

Mounting Bolt Pattern                        254mm x 114.3mm

Notes                                                       Minimum Battery for winching – 650CC

WARRANTY

5Years
