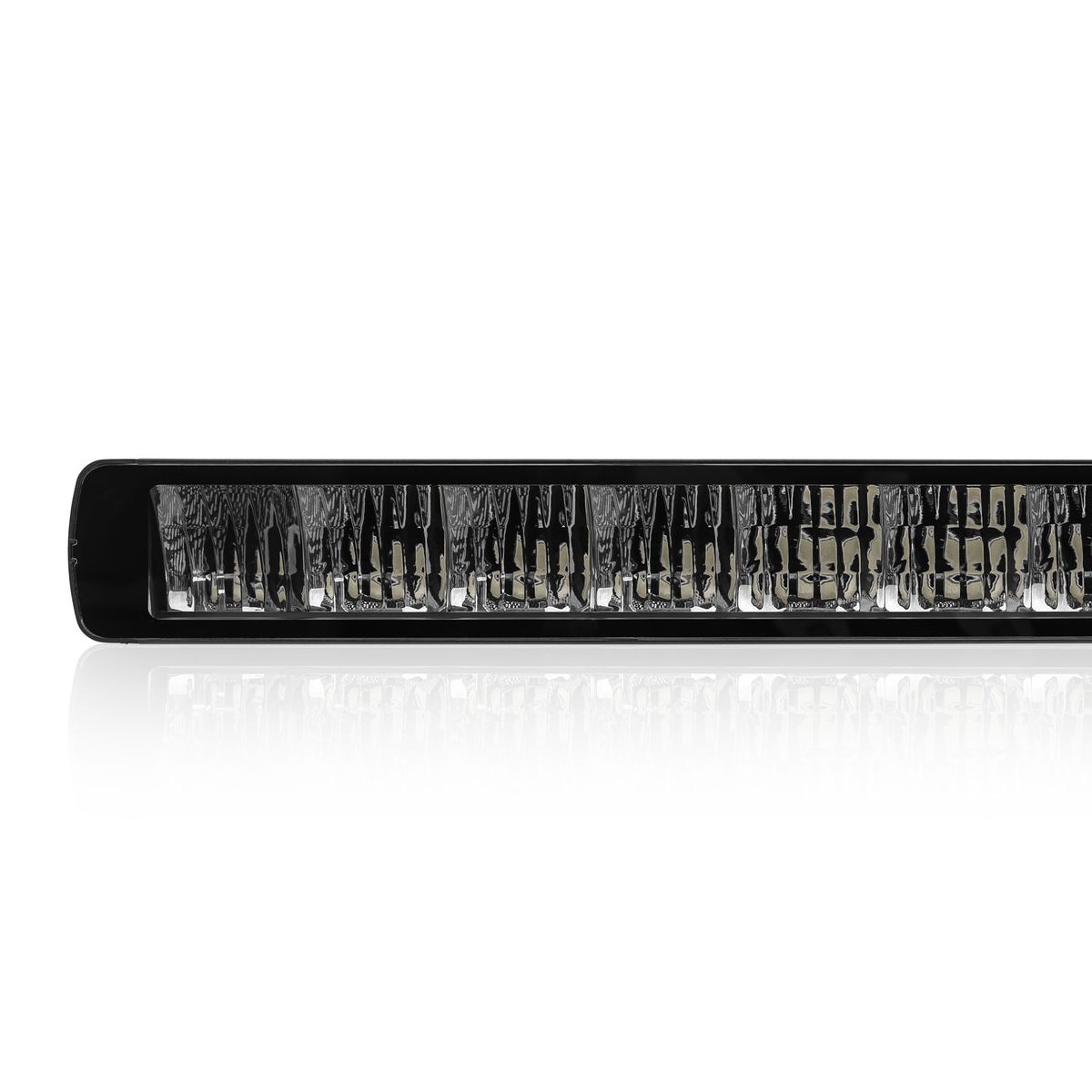

ST-X 50 INCH LED LIGHT BAR
1,849.00 AED
- Distance: 375m
- Lumens: 6,720Lm
- Brackets included
- Easy Fit High Beam Wiring Harness with H4 & HB3 adapters to High Beam
- 5 years warranty protection
In stock
Description
THE BEAM PATTERN
If you’re looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.
- Significantly minimizes adverse reflection from road signs
- Controlled vertical spread minimizes reflections off of high-mounted road signs.
KEY FEATURES
-
- 20x 15W LEDs
- LED Parking / Position Light Function (Amber or White built-in)
- Breather allows pressure equalisation when rapid heat up and cool down cycles occur
- Anodized Polyester Powder Coat
- Weatherproof Deutsch® DTP Connector
- Includes adjustable Side brackets & Sliding bottom brackets
- Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles)
- Protected against reverse polarity
- Shockproof, IP68 waterproof, UV Shielded
- Protected Against RFI / EMC Interference
- Voltage & current surge protection
- Pulse Width Modulation Thermal Management

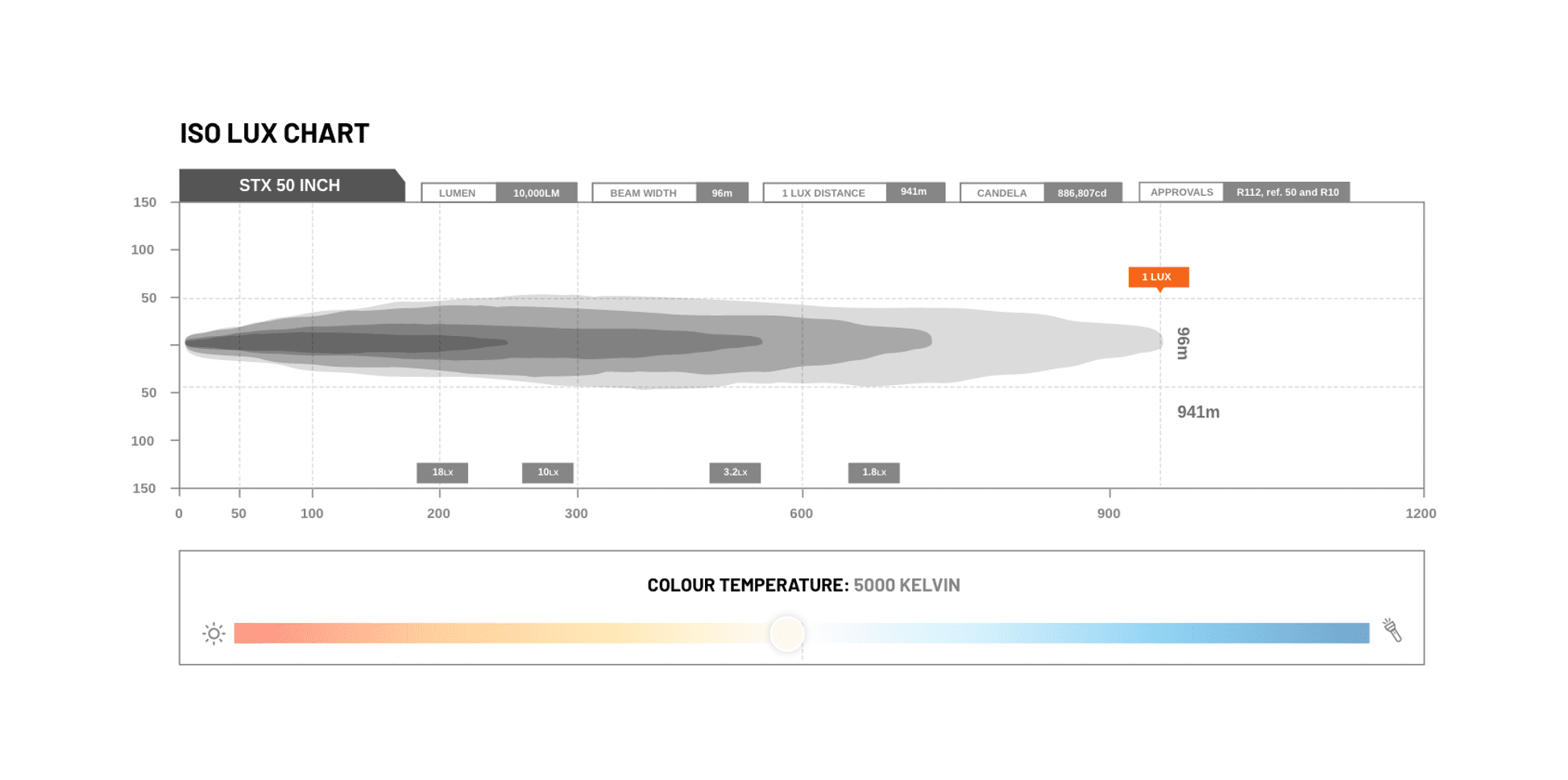

LUX GRAPH

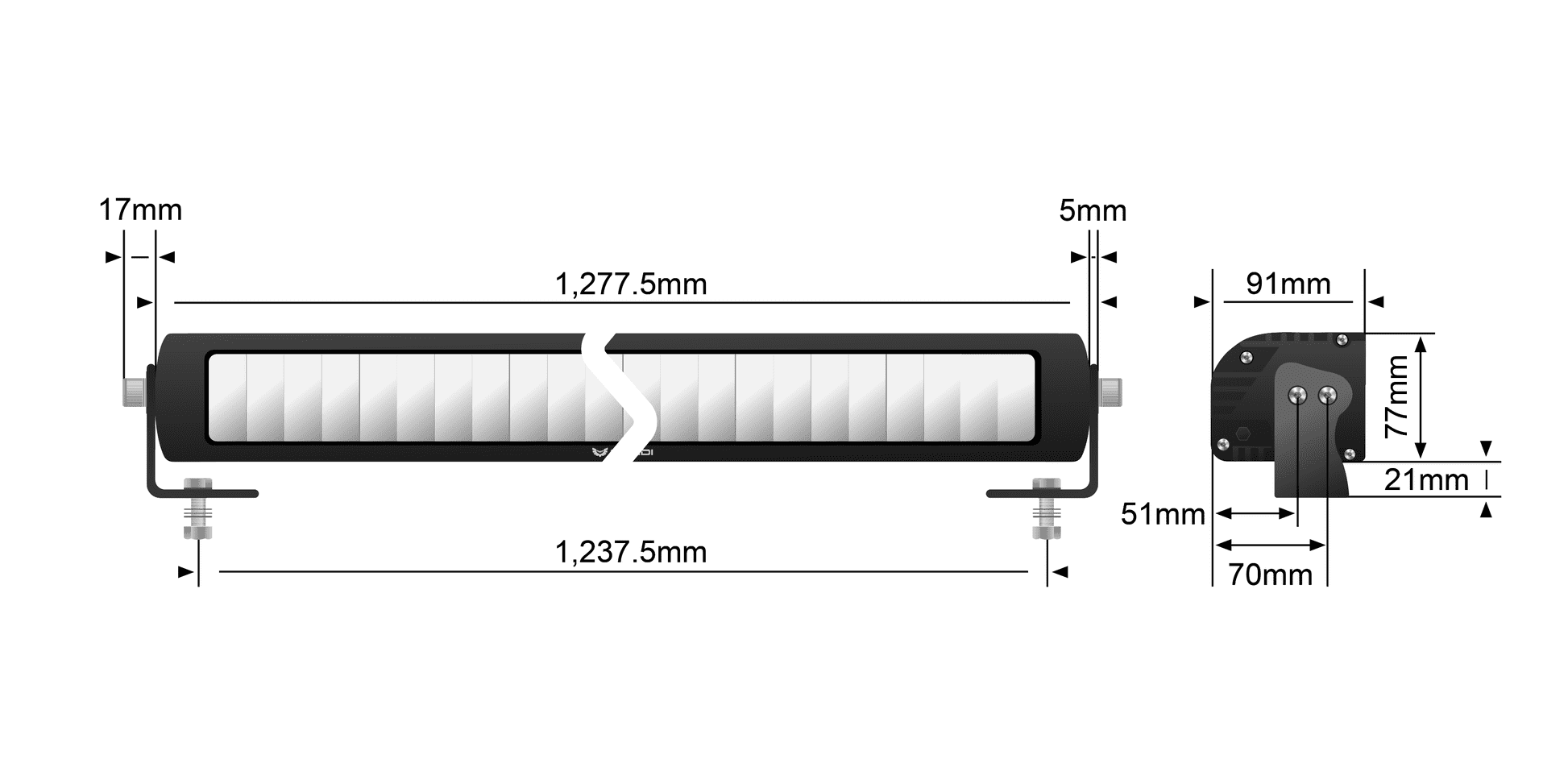

DIMENSIONS
KEY TECHNICAL BREAKDOWN
- Registered Design: 201915829.
- CREE® XLamp XP-L HI undomed LEDs using CREE’s breakthrough SC5 Technology™
- RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
- IP68 – Submersible to 3m
- Deutsch DT 15A connector
- 32mm diameter parabolic reflectors
- Spread and Spot beam pattern
- 4mm thick 304 stainless steel side brackets included.
- Cast Alloy adjustable sliding bracket included.
- Nitto Denkoâ„¢ Breather with PTFE microporous membrane
- Very heavy-duty Smart Plug & Play ADR compliant Wiring Harness. (Switch, Dual Fuse, Dual Relay and HB3 and H4 Piggyback Adaptors)Â include
TECH SPECS
| VOLTAGE | 9-36V |
| AMPERES | 22.64A @ 12V (full power), 2.75A @ 12V (limit power) |
| POWER | 271.68W (full power), 33W (limit power) |
| LUMENS | 10000LM (full power), 2168LM (limit power) |
| COLOUR TEMPERATURE | 5000K |
| AMP RATING | 0.7a |
| PHOTOMETRIC DATA | 1 lux @ 941m (full power). 1 lux @ 433m (limit power) |
| LENS MATERIAL | Optical grade, Hard-coated LEXAN |
| HOUSING MATERIAL | 6063 Extrusion |
| INGRESS PROTECTION | IP68 |
| CANDELAS | 886807 @ full power, 187814 @ limit power |
| CONNECTOR | 60cm Cable with DTP 4in |
| OPERATING TEMP | -40°C ~ +150°C |
| CERTIFICATES | R112, ref. 50 and R10 |
| LIFESPAN | 50, 000hrs (LM80) |
| PRODUCT WEIGHT | 4.2kg |
| SHIPPING WEIGHT | 5.7kg |
WHAT’S INCLUDED
- 1 x 50 Inch ST-X-20L LED Light Bar
- 2 x Steel Side Brackets
- 2 x Steel Sliding Brackets
- 2 x Brace Support Brackets
- Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
- Comprehensive 304 Stainless Steel fasteners
- Wiring Instructions
Shipping Dimensions
| Weight | 8.6 kg |
|---|---|
| Dimensions | 132 × 18 × 15 cm |
| Brand |
