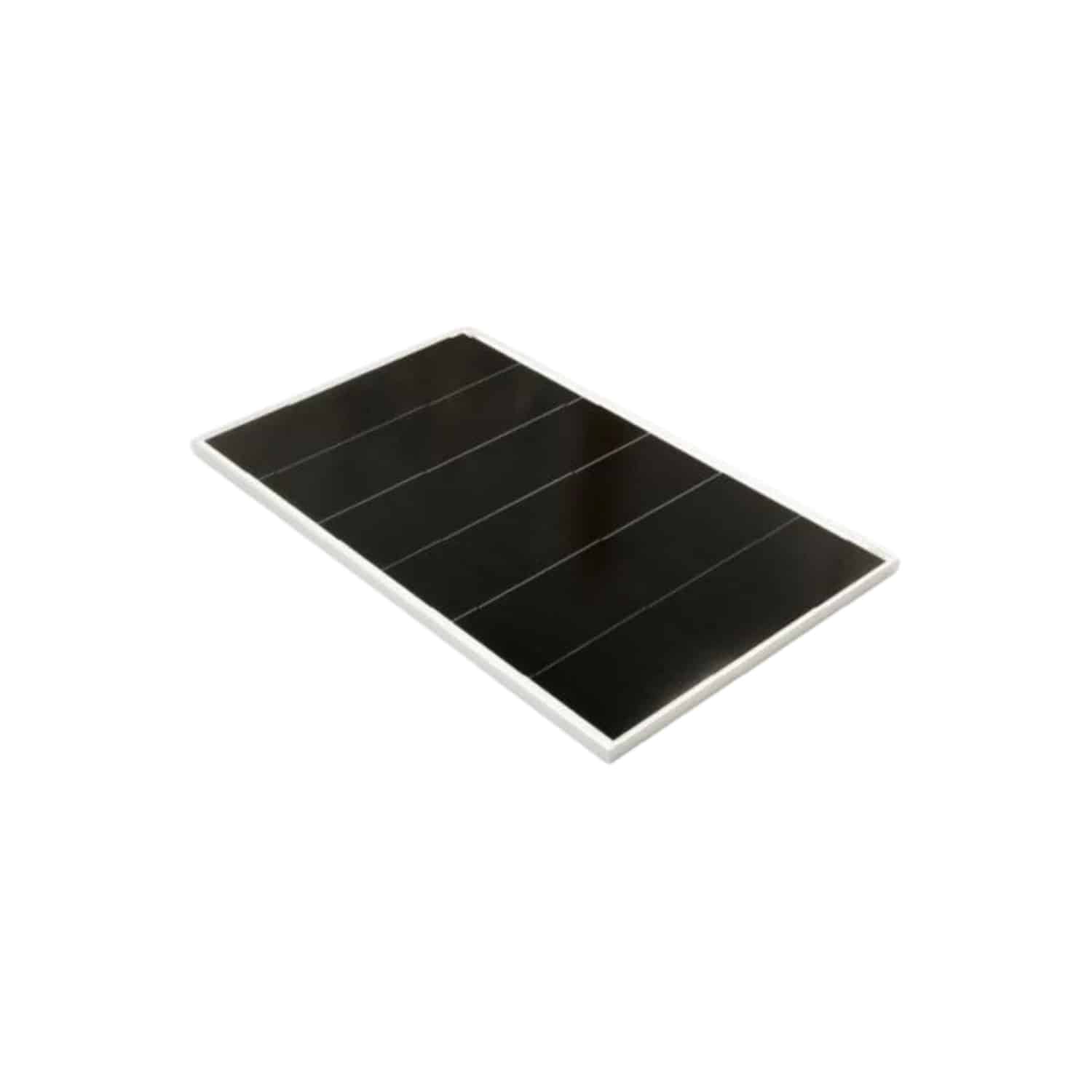

REDARC 200W Perc-Shingled Rigid Solar Panel

REDARC 200W Monocrystalline Solar Panel – SPRP1200. A 200W solar panel built for harsh road and weather conditions. Designed for fixed installation, usually on the roof area of caravans, RV’s, motorhomes, camper trailer and 4×4 vehicle applications. MC4 style connectors for easy installation. Integrate into the REDARC product line and will be supported by existing solar regulator and solar accessory products.

Features:

• Monocrystalline construction.
• Test to conform to CE standards from manufacture.
• Anodised aluminium frame.
• Robust tempered glass coating.
• Quality MC4 style connectors.
• Dimensions (mm): 780 x 1300 x 35.
• 2 year warranty.

Specifications:

• Solar cell type: Monocrystalline.
• Open circuit voltage: 29.5V.
• Frame or material: Anodized aluminium.
• Max. Power voltage: 25.0V.
• Short circuit current: 8.5A.
• Operating temperature: –40°C to +85°C.
• Cable length: 900mm.
• Max power current: 8.0A.
• Connector type: MC4-style.
• Dimensions:
  • Height (mm): 780
  • Width (mm): 1300
  • Weight (kg): 10.6
