LUX GRAPH
DIMENSIONS
THE NERDY DETAILS
- 4 x CREE XM-L2 5700K
- Environmentally sealed and molded Deutsch DT-2 connector with male wire tail included
- RFI and EMI suppressed circuity ensure no interference with sensitive radio equipment.
- Fitted with Gore Breather Vent – Certified IP68 | Submersible to 3m
- 304 Series Stainless Steel Bracket and Fasteners
BEAM CHARACTERISTICS
Spot beam: Relentless, in fact we’re still shocked every time we turn it on it – Potent enough to take on the task of stealth driving light.
Diffuse Spread: A homogeneous flood beam which is smooth almost cloudy in light distribution making it an ideal near-field work-light, reverse or camp light.
Wide Beam: The wide beam produces a deeper flood beam in comparison to diffuse, better suited to application require a longer throw flood beam.
TECH SPECS
LED Power Output | 4 x 10w LEDs |
Lumens | 4,200Lm |
Operating Voltage | 12v & 24v Compatibility |
IP Rating | IP68 |
LED | CREE XML2 |
Colour Temperature (CCT) | 5700K |
Material | Die Cast Aluminium Housing |
Lens | Lexan Optical |
Mounting Bracket | Stainless Steel U-Bracket |
Bolts and FIttings | Included |
Beam Type | Diffuse |
Life Span | 50,000 Hours |
Amp Draw | 2.1A @ 13.6v |
Weight | 0.550kg |
WHAT’S INCLUDED

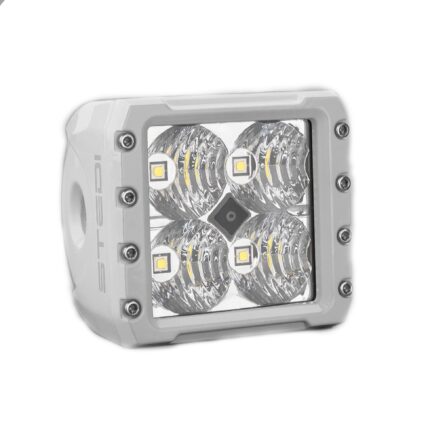

- 1 x C4 Marine Spec LED Diffuse Light
- Blue Transparent Cover
- Black Transparent Cover
- Yellow Transparent Cover
- Stainless U Mounting Brackets
- Mounting Hardware
- Male and Female Deutsch Connectors
- Vibration Dampener
