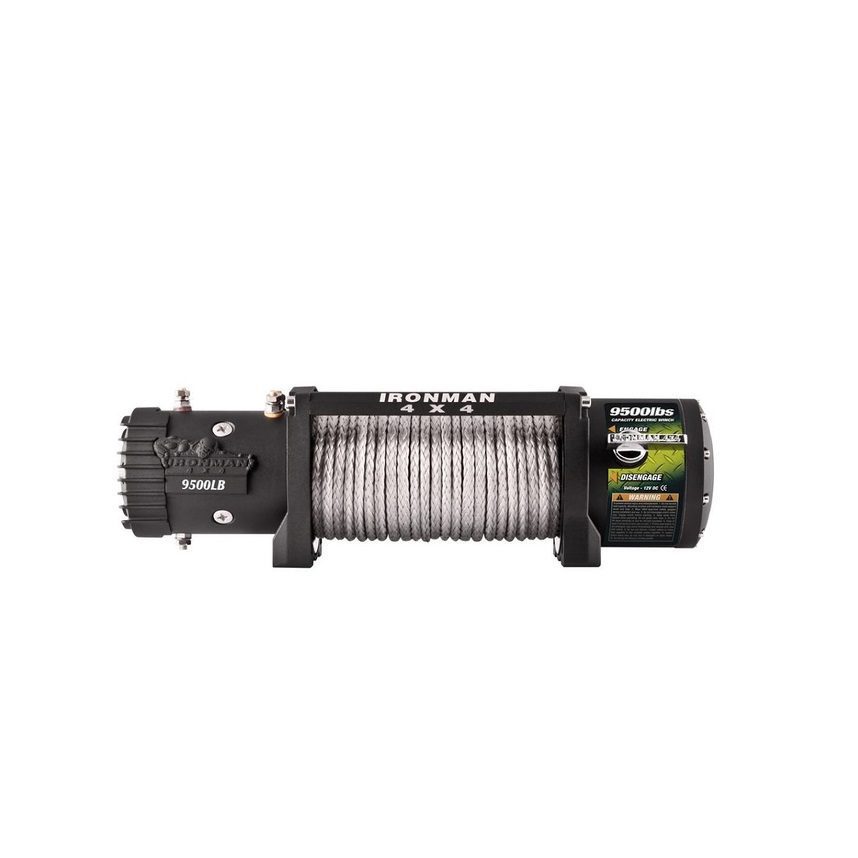

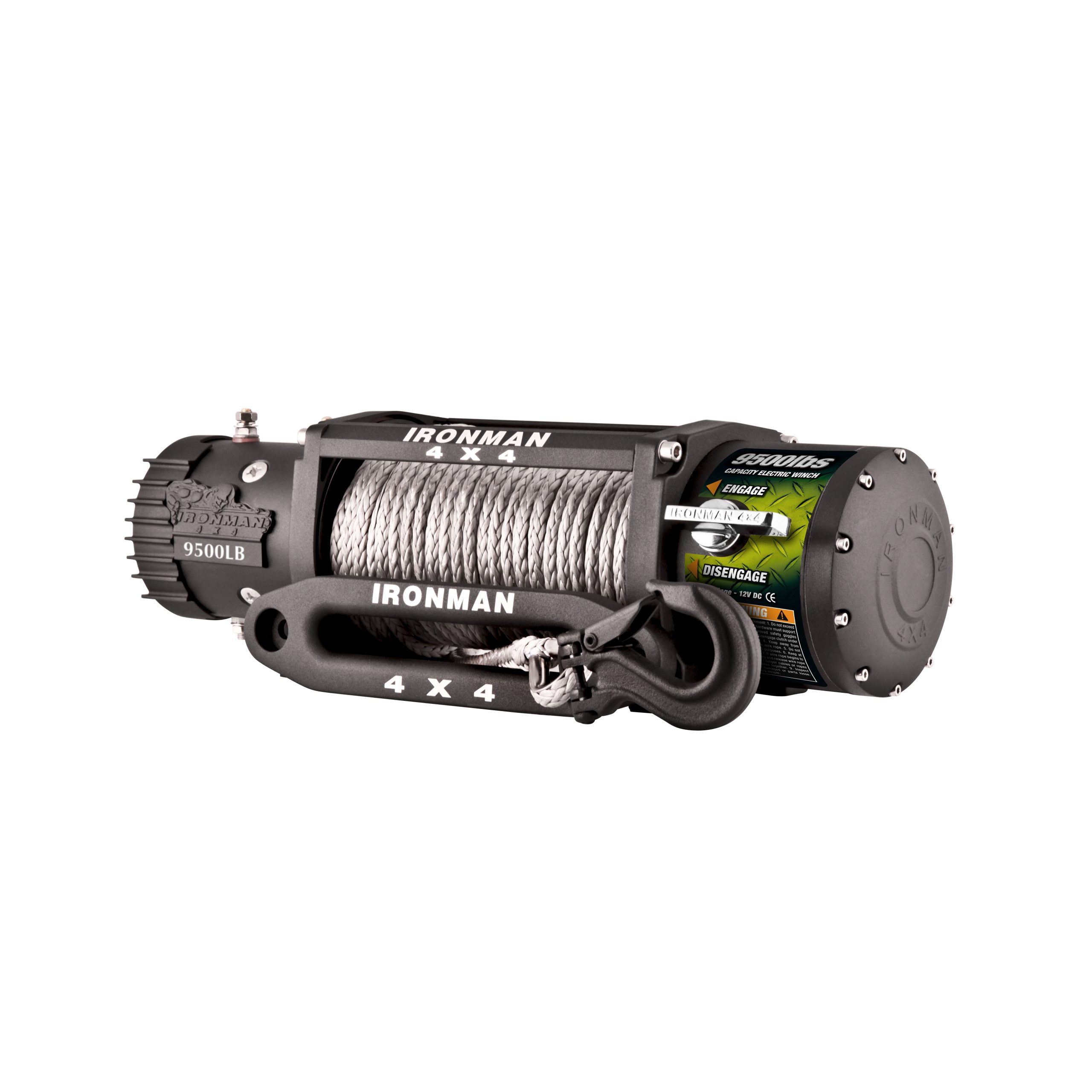

9,500LBS SYNTHETIC ROPE MONSTER WINCH

The Ironman 4×4 Monster Winch has evolved! Totally redesigned and upgraded, Ironman 4×4 Monster winches include stronger motors, heavy duty casings, synthetic ropes, competition style solenoid and a motor breather.

Designed and developed right here at Ironman 4×4 Australia, our latest Monster Winch range are a must have accessory for your four wheel drive!

SPECIFICATIONS

Motor                                                     5.5HP / 4.1KW

Power                                                     12VDC

Weight                                                   28kg

Wireless                                                 Remote Range 30.5m

Remote Lead Length                           3.6m

Gear Train                                             3 Stage Planetary

Gear Reduction Ratio                         265:1

Brake                                                      Automatic Camp Lock (In Drum)

Synthetic Rope Dimensions              28m x 8mm

Overall Dimensions                             540mm (L) x 165mm (H) x 150mm (W)

Mounting Bolt Pattern                        254mm x 114.3mm

Notes                                                       Minimum Battery for winching – 650CCA

WARRANTY

5Years
